Trim Cylinder(S / N-Merc-5488751 / Mariner-5555929 & Below) for Mercury / Mariner (175 HP V-6 (1976-1988 Combined Books)) Engine

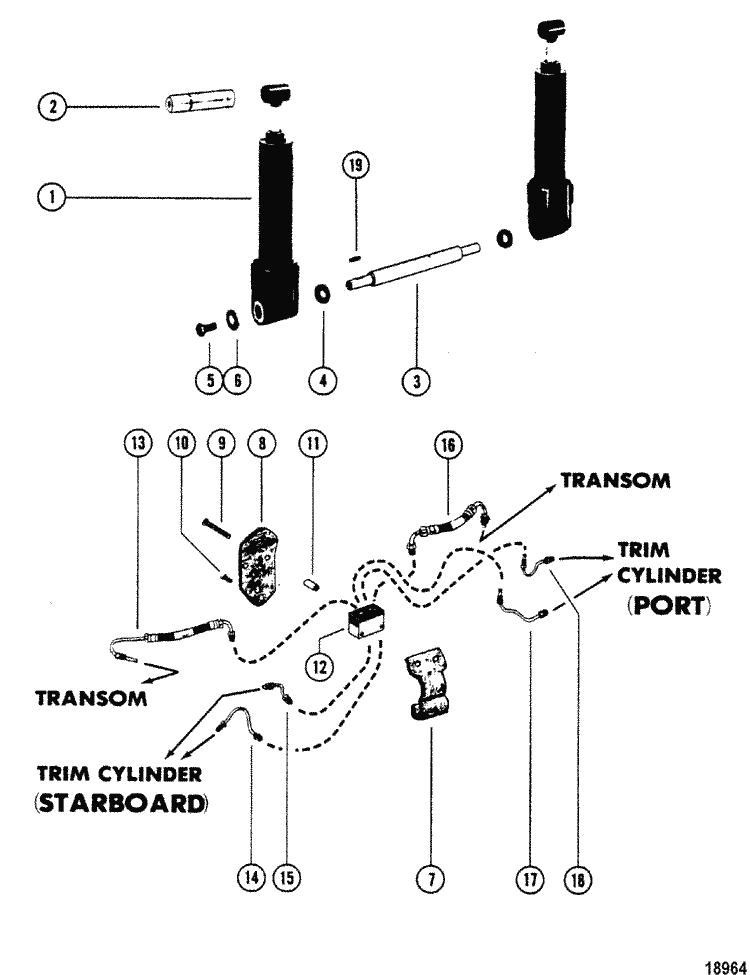

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]
| #1 — 79114A 4 — TRIM CYLINDER ASSEMBLY (2 required per assembly) | ||
  |
|
79114A 4 - Trim Cylinder, NLA [ More info ] Unavailable |
| #2 — 67694 — PIN (2 required per assembly) | ||
  |
|
67694 - Pin, NLA [ More info ]
|
| #3 — 67701 — SHAFT (1 required per assembly) | ||
  |
|
67701 - Shaft, NLA [ More info ]
|
| #4 — 67745 — WASHER (2 required per assembly) | ||
  |
|
12-67745 - Washer, NLA [ More info ] Unavailable |
| #5 — 67756 — SCREW (2 required per assembly) | ||
  |
|
10-67756 - Screw, NLA [ More info ]
|
| #6 — 48926 — WASHER (2 required per assembly) | ||
  |
|
12-48926 - Washer [ More info ]
|
| #7 — 67698T — SPACER (1 required per assembly) | ||
  |
|
67698T - Spacer, NLA [ More info ] Unavailable |
| #8 — 67700 — COVER (1 required per assembly) | ||
  |
|
67700 - Cover [ More info ] Unavailable |
| #9 — 35049 — SCREW, (.250-20 x 2.75) (2 required per assembly) | ||
  |
|
10-35049 - Screw [ More info ]
|
| #10 — 20665 — SCREW, (.190-24 x .50) (1 required per assembly) | ||
  |
|
10-20665 - Screw, NLA [ More info ]
|
| #11 — 67671 — SPACER (2 required per assembly) | ||
  |
|
23-67671 - SPACER,NLA [ More info ]
|
| #12 — 67696 — MANIFOLD (1 required per assembly) | ||
  |
|
67696 - Manifold, NLA [ More info ] Unavailable |
| #13 — 67683 — HYDRAULIC TUBE (1 required per assembly) — (STARBOARD) | ||
  |
|
32-67683 - Tubing [ More info ]
|
| #14 — 67681 — HYDRAULIC TUBE (1 required per assembly) — (STARBOARAD - DOWN) | ||
  |
|
32-67681 - Tubing, NLA [ More info ]
|
| #15 — 67678 — HYDRAULIC TUBE (1 required per assembly) — (STARBOARD - UP) | ||
  |
|
32-67678 - Tubing, NLA [ More info ]
|
| #16 — 67682 — HYDRAULIC TUBE (1 required per assembly) — (PORT) | ||
  |
|
32-67682 - Tubing [ More info ]
|
| #17 — 67680 — HYDRAULIC TUBE (1 required per assembly) — (PORT - UP) | ||
  |
|
32-67680 - Tubing, NLA [ More info ]
|
| #18 — 67679 — HYDRAULIC TUBE (1 required per assembly) — (PORT - DOWN) | ||
  |
|
32-67679 - Tubing, NLA [ More info ] Unavailable |
| #19 — 20094 — KEY, Woodruff (1 required per assembly) | ||
  |
|
28-20094 - Key - Priced Individually [ More info ]
|
